Flame-diffusing and Ember-resistant Foundation Mesh Screen
Flame-diffusing and Ember-resistant Foundation Mesh Screen
Flame-diffusing and Ember-resistant Foundation Mesh Screen
Description

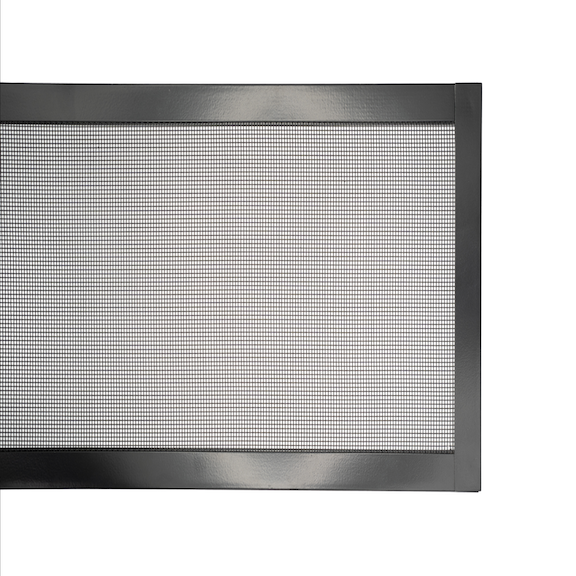

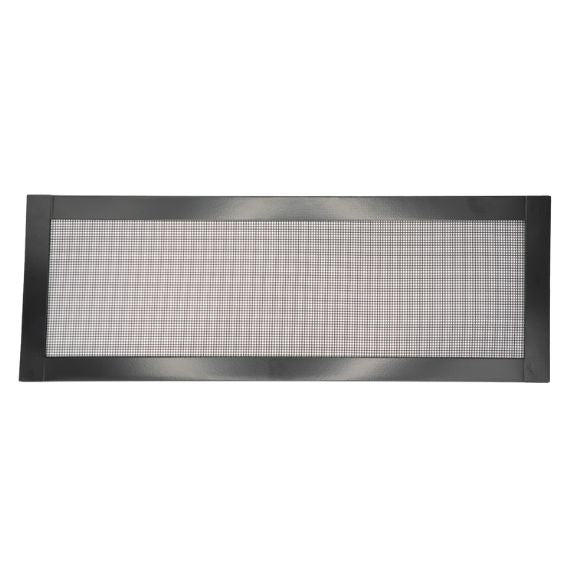

Complete Vent Screens available in standard sizes, ready to install. Made with Wildfire Defense Mesh 98 and compliant with California Building Code Chapter 7A*
• 98% effective at stopping dangerous embers
• Reduces radiant heat by ~38%
• Diffuses direct flame
- Dimensions 8” x 17”: Finished Size 8” x 17”, Mesh Size 6.5” x 15.5”, Frame Width 0.75”, Net Free Area 62.47%
- Dimensions 6” x 17”: Finished Size 6” x 17”, Mesh Size 4.5” x 15.5”, Frame Width 0.75”, Net Free Area 43.25%
- Dimensions 8” x 16”: Finished Size 8” x 16”, Mesh Size 6” x 14”, Frame Width 1”, Net Free Area 52.08%
- Aperture: 0.0657” / 1.67mm
- Wire Diameter: 0.0177” / 26 SWG / 0.45 mm
- Finish: Black Powder Coat Finish
- Weave Type: Plain Weave
- Approx % open area: 62%
- Stainless Steel Grade: 304 / 316
Higher Tensile Woven Wire
- Intercrossing wires will not break
- Memory recognition allows it to stay flat
1
/
of
3
Flame-diffusing and Ember-resistant Foundation Mesh Screen
Flame-diffusing and Ember-resistant Foundation Mesh Screen
Fire Mesh
Regular price
$22.49 USD
Regular price
Sale price
$22.49 USD
Taxes calculated at checkout
Description
Complete Vent Screens available in standard sizes, ready to install. Made with Wildfire Defense Mesh 98 and compliant with California Building Code Chapter 7A*
• 98% effective at stopping dangerous embers
• Reduces radiant heat by ~38%
• Diffuses direct flame
- Dimensions 8” x 17”: Finished Size 8” x 17”, Mesh Size 6.5” x 15.5”, Frame Width 0.75”, Net Free Area 62.47%
- Dimensions 6” x 17”: Finished Size 6” x 17”, Mesh Size 4.5” x 15.5”, Frame Width 0.75”, Net Free Area 43.25%
- Dimensions 8” x 16”: Finished Size 8” x 16”, Mesh Size 6” x 14”, Frame Width 1”, Net Free Area 52.08%
- Aperture: 0.0657” / 1.67mm
- Wire Diameter: 0.0177” / 26 SWG / 0.45 mm
- Finish: Black Powder Coat Finish
- Weave Type: Plain Weave
- Approx % open area: 62%
- Stainless Steel Grade: 304 / 316
Higher Tensile Woven Wire
- Intercrossing wires will not break
- Memory recognition allows it to stay flat
