ROXUL Safe®
ROCKWOOL ROXUL Safe® is a stone wool fireblocking insulation designed to fill perimeter gaps between concrete floor slabs and exterior wall systems, between firewalls and ceiling slabs, through penetrations, and around conduit pipes and duct openings.
ROXUL Safe is noncombustible and fire resistant, and will not develop toxic smoke or promote flame spread. It is a component of ASTM E2307 tested and approved perimeter fire containment systems, and is always used in conjunction with a fire sealant in tested and approved systems.
- Applications

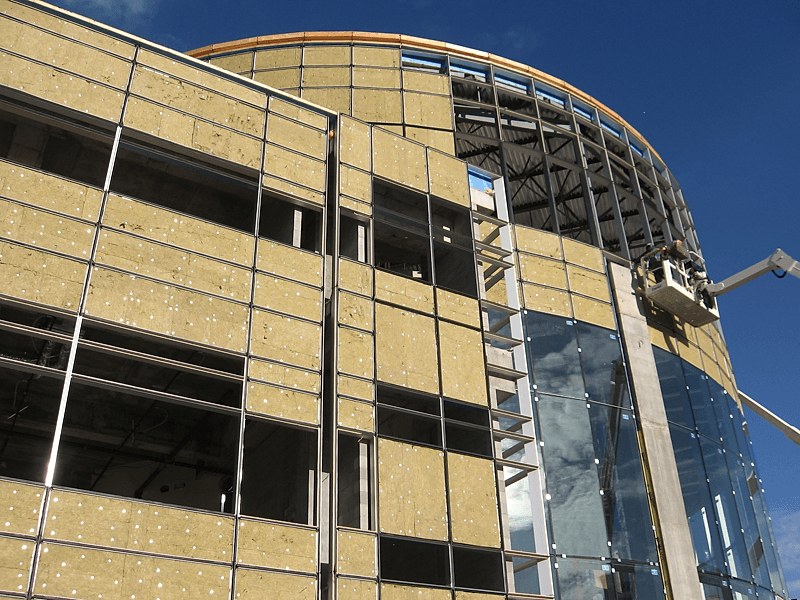

- Perimeter fire containment, Fire-rated joints, Through-penetration firestopping, Curtain wall assemblies, Exterior walls, Fire protection
- Properties
- Stone wool, Noncombustible, Water repellent, Dimensionally stable, Inorganic
- Material
- Stone wool
- Minimum density
- 4.0 lbs/ft³ (64 kg/m³)
- Flame spread index
- 0 (ASTM E84)
- Smoke developed index
- 0 (ASTM E84)
- Combustibility
- Non-combustible (ASTM E136 at 750 °C · CAN/ULC S114)
- Standard compliance
- ASTM C612 Type IVA · CAN/ULC S702 Type 1
- Corrosion of steel
- Passed (ASTM C665)
- Fungi resistance
- Passed (ASTM C1338)
- Thicknesses
- 1.5 in · 2 in · 3 in · 4 in · 5 in · 6 in
- Batt size
- 24 in × 48 in
- Pack coverage
- 24–96 sq ft per pack
Uses+
Perimeter gaps between concrete floor slabs and exterior wall systems
Between firewalls and ceiling slabs
Through penetrations, conduit pipes and duct openings in walls and floor slabs
Fire-rated joints designed for compression fit
Why Stone Wool+
Noncombustible and fire resistant — stone wool works to contain a fire and prevent its spread.
Will not develop toxic smoke or promote flame spread, even when exposed directly to a fire.
Water repellent to resist absorption and enhance an assembly's drying potential.
Nondirectional fiber orientation helps absorb sound moving between interior spaces and noise from the exterior.
Dimensionally stable: stone wool does not expand or contract due to temperature variances.
Sizes & Packaging+
1.5 in thick · 12 pieces/pack · 96 sq ft/pack (item 325089)
2 in thick · 8 pieces/pack · 64 sq ft/pack (item 168733)
3 in thick · 5 pieces/pack · 40 sq ft/pack (item 168734)
4 in thick · 4 pieces/pack · 32 sq ft/pack (item 168735)
5 in thick · 3 pieces/pack · 24 sq ft/pack (item 325093)
6 in thick · 3 pieces/pack · 24 sq ft/pack (item 325160)
All batts are 24 in × 48 in.
Certifications+
UL Classified — CA/USA and ETL Intertek Listed — CA/USA.
Listed on the Declare product database.
Component of ASTM E2307 tested and approved perimeter fire containment systems.
